Encapsulating Resins

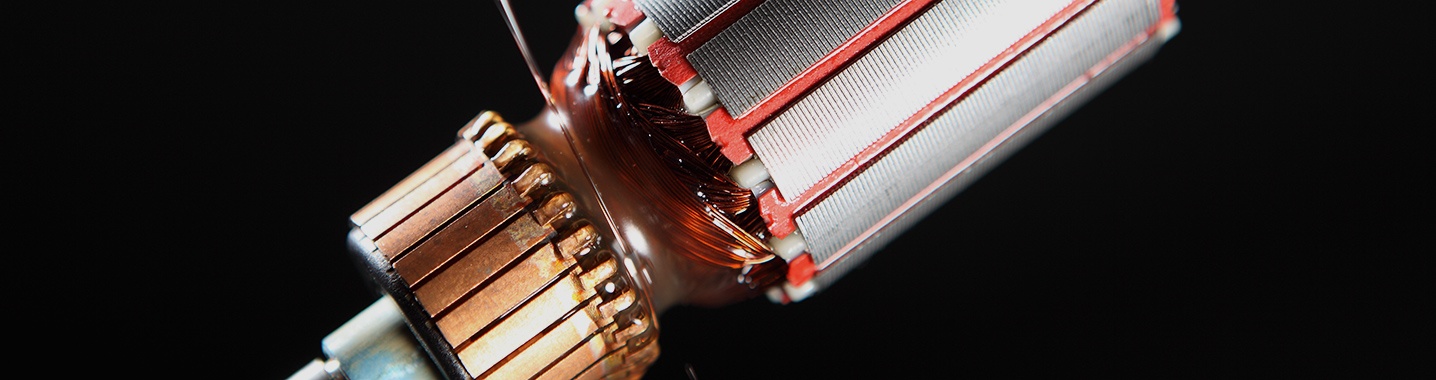

They are used for reinforcing insulation in rotor necks, providing filling, protection, and preventing carbon dust. The products are available in single-component or two-component options to meet different process requirements. They come in various colors and materials, offering safe and reliable protection for motor operation.
| Product Code | Base Resin | Unique Characteristics | Viscosity @25℃ mPa·s | Mix Ratio | Cure Schedule | Application | Thermal Class |
| R-960 | Epoxy Resin | Fast curing, excellent processability (for slotted commutater) and high strength | 2000-4000 | 2:1 | 140℃@0.5-1h | Peristaltic pumps, pneumatic pumps, etc. | 155℃ |
R-1146-B | Epoxy Resin | Environmentally friendly, low VOC, high adhesion, good penetration and filling, anti-crack | 3000-5000 | 1:1 | 140℃@0.5-1h | Peristaltic pumps, pneumatic pumps, etc. | 155℃ |
| R-990 | Epoxy Resin | Room temperature curing, high strength, convenient manual handling. | 2000-3000 | 2:1 | 23℃@12h/80℃@0.5h | Manual ,pneumatic pumps etc. | 155℃ |
| R-510-B | Unsaturated Polyester Resin | Fast curing, high heat resistance, high hardness. | 1000-3000 | 1:100 | 130℃@0.5-1h | Peristaltic pumps, pneumatic pumps, etc. | 180℃ |
| R-610-B | Epoxy Resin | Environmental-friendly Low VOC ,high heat resistance, high adhesion, anti-crack, anti-splashing | 2000-3000 | Single | 150℃@0.5-1h | Peristaltic pumps, pneumatic pumps, etc. | 180℃ |
| R-611-B | Epoxy Resin | Environmental-friendly, low VOC, high heat resistance, high thermal conductivity, anti-crack | 2000-3000 | Single | 150℃@0.5-1h | Peristaltic pumps, pneumatic pumps, etc. | 200℃ |
